Master Quick Stop

STREAMLINE YOUR WORK WITH PRECISION AND SAFETY

Designed by a machinist with the machinist and toolmaker in mind, the Master Quick Stop offers a full range of motion and versatility. It features T-slot mounting compatible with various knee mills, bed mills, and CNC mills. With over 3 square feet of reach from a single mounted position, this stop saves significant time during setup.

All of our meat comes from farm-fed, humanely raised cattle.

Our shakes are made with organic ice cream from a local creamery.

Built for Precision, Strength, and Versatility

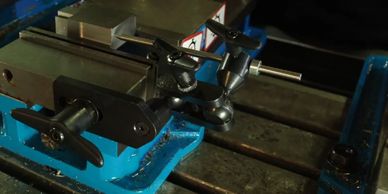

Base Plate mounting slot provides adjustability when positioning the Master Quick Stop and securing with T-Nut and Locking handle. Comes with standard ½”-13 T-Nut for mounting. A Lift and Turn handle is used so it can be easily manipulated for clearance and interference issues.

Unique design utilizing Ball Joint construction with components made in a partial Dog Bone shape for 3D positioning and 360 degrees of rotational movement. A Lift and Turn handle is used so it can be easily manipulated for clearance and interference issues

Clamp Lock Handle is assembled utilizing a ball bearing thrust washer design to lower friction within the assembly and increase torque thus providing a more positive clamping force.



Clamp Lock Handle also has a Spring Washer integrated in the assembly stack up which allows the Master Quick Stop to be partially unlocked. Tension in the clamping force remains so components are held in place while relieving enough pressure for flexibility and movement until a final position is achieved.

A stainless steel Stop Rod with moveable Collar are used for extension control and also provide for position memory when moving the rod away from the workpiece as needed for machine tool path interferences but then repositioning when loading a new part.

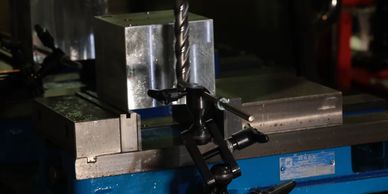

The robust design and components make this unit extremely rigid and steadfast when in the Locked Position. Showing that even under the weight of a solid steel vise and base plate the Master Quick Stop is virtually immoveable.
